Patch cord FO, LC-QR Uniboot PC/UPC Grade C - LC-QR Uniboot PC/UPC Grade C, Singlemode OS2 G.657.A2, Simplex 1.4mm, FRLSZH, 2m

Article no.: R867831
EAN / GTIN: 7611821015062
Delivery Unit: 1
Unit of Measure: Piece

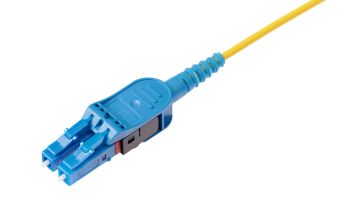

Both sides fitted with LC-QR Uniboot PC connector.

Connector color: blue.

Lever color: blue.

Fiber: SM E9/125 G.657A2 (OS2).

Cable: twinfiber cable, yellow.

Technical Data
Cable type Patch cord, polarity A-A
Fiber type Singlemode (SM)
Outer sheath material LSZH
Cable sheath characteristics Cable, metal-free
zero-halogen
flame retardant
Number of connectors (A) 1
Number of connectors (B) 1
Cable overall diameter Twin Fiber 1.4mm
Connector type (A) LC-QR
Connector type (B) LC-QR
Polishing plug (A) PC
Polishing plug (B) PC
Return loss grade RL (A) 2
Return loss grade RL (B) 2
Attenuation grade IL (A) C
Attenuation grade IL (B) C
Connector class connector
Mechanical Data
Color yellow
Cable Length 2.0 m / 6 ft 7 in
Electrical Data
Standard LC connector acc. to IEC 61754-20
Patch cord with LSZH jacket, twinfiber 1.4mm, singlemode Fiber class.

Mounted on both sides with LC-QR connector, IEC 61754-20 compatible, Zirconia (ceramic) ferrule with a PC polished (0°) endface geometry, connectors qualified in acc. with IEC 61753-1 for category C (controlled environment), blue connector housing (singlemode), blue unlocking clip, material PC / UL 94 V-0, blue strain relief, material PP, white plastic dust shutter.

Performance :

Insertion loss (IL) Grade C for 97% of the tested specimen: ≤ 0.50 dB / typical ≤ 0.25 dB

Return loss (RL) Grade 2: ≥ 45 dB

Mechanical specifications:

Mating cycles: delta < 0.2 dB after 500 mating cycles

Pull-out force patch cord: ≥ 50 N
