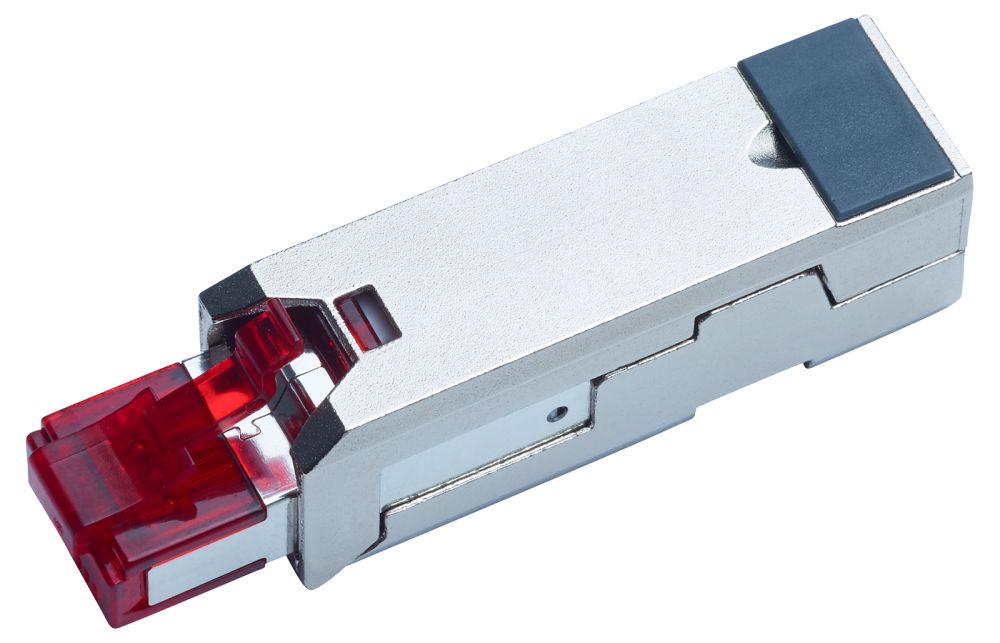

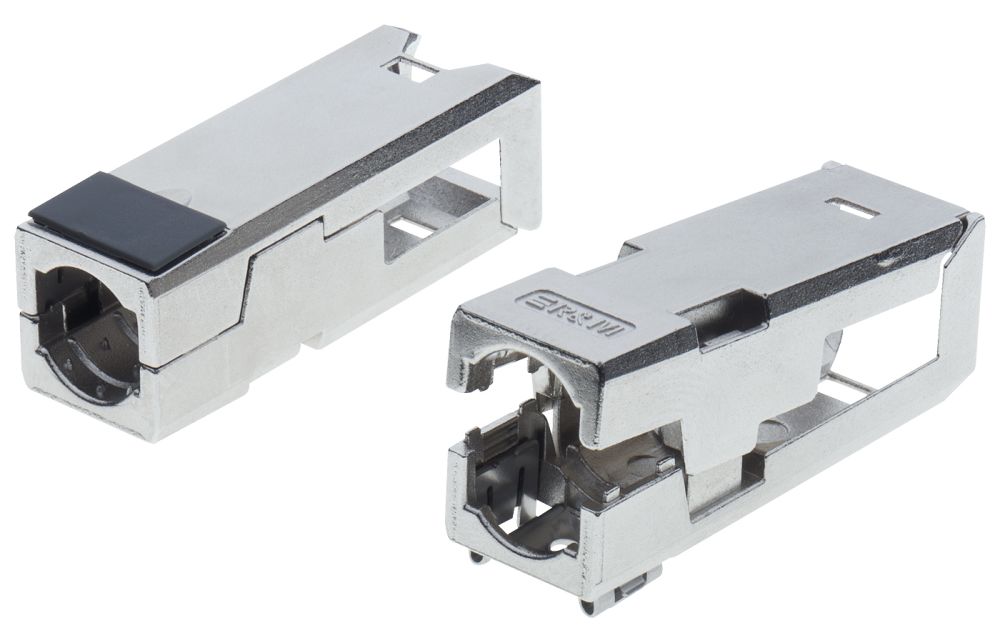

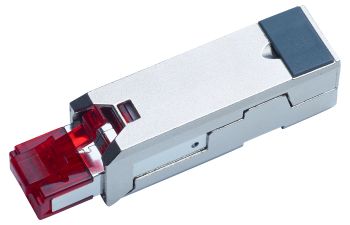

Housing FM45 shielded or unshielded IP20 metal housing

Article no.: R510110
EAN / GTIN: 7611821049289
Delivery Unit: 10
Unit of Measure: Piece

  • Protective housing made from metal for field terminateable RJ45 connector

  • Catch locking de-lockable

  • Cable opening for cables with diameter 4.5mm up to 10.0mm

  • Strain relief via catch spring



Scope of supply

  • Metal housing

  • Installation instructions

Technical Data
Cable overall diameter 4.5 - 10.0mm
Protection class IP IP 20
Colour Coding Yes, optional
Mechanical Data
Dimensions 43.6 mm x 13.9 mm x 14.5 mm / 1.717 in x 0.547 in x 0.571 in (W x H x D)
Design straight
Color Plug: transparent Housing: traffic gray (RAL 7042)
Material Zinc diecasting nickel plated
Environmental Characteristics
Operation temperature -40 °C to +70 °C / -40 °F to +158 °F
Electrical Data
Standard IEC 60529-6
IEC 60603-7

Metal protective housing for field terminateable RJ45 connector with snap-in-latching. Protection class IP20 according to IEC 60529 for cable diameters of 4.5mm to 10.0mm.
