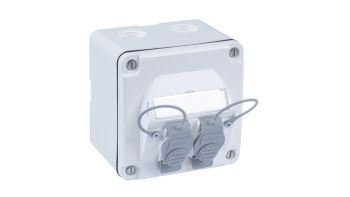

SM DA-Connection Box IP67, II, 87x87, Cat.6A, 2 Port, white

Article no.:	R880929
EAN / GTIN:	7611821011958
Delivery Unit:	1
Unit of Measure:	Piece

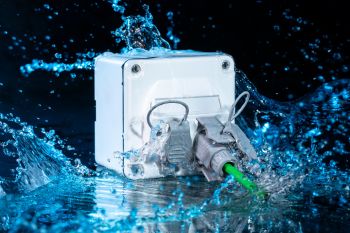

In- and Outdoor AP outlets made of impact-resistant PC + ABS thermoplastic.

The AP outlets complies with protection class IP44, IP54 and IP67, also it is UV and weather resistant.

Info: Cable Gland M20

General
Technical data
Accessories
Further Downloads

Scope of supply

1x face plate, wet FM/SM IP67
1x O-ring IP54, IP67
1x housing bottom part, wet SM IP54/IP67
1x marking, wet FM/SM IP54/67
1x module holder, outlet Cat. 6A, 2x1Port, white
1x labeling strip-FO-Outlet-12x47
2x protective caps FM45 IP67 and fasteningscrews

Technical Data

Protection class IP	IP 67 (correlates to NEMA 6P)
Application area	surface-mounting (SM)&(FM)
Assembly	empty
Outlet type	surface-mounting (SM)&(FM)
Holder for connector / module	Special (without mounting plate)
Capacity (ports)	2
Distributor housing type	housing

Mechanical Data

Dimensions	87 mm x 87 mm x 80 mm / 3.425 in x 3.425 in x 3.15 in (W x H x D)
Color	white
Color Code NCS	S 0500-N
Material	plastic: PC + ABS

Electrical Data

Standard	Halogen-free, in accordance with DIN/VDE 0472/815

Standard

Halogen-free, in accordance with DIN/VDE 0472/815

Type	Picture	Description	Article
Accessories		R&Mindustry Patch Cord,m, Cat. 6A (ISO), Shielded, Green, PUR, TIA 568A, Plug RJ45 Type 06 Plast IP67, s, Plug RJ45 Type 06 Plast IP67, s, 10m	R313636	PC
Accessories		R&Mindustry Patch Cord,m, Cat. 6A (ISO), Shielded, Green, PUR, TIA 568A, Plug RJ45 Type 06 Plast IP67, s, Plug RJ45 Type 06 Plast IP67, s, 2.5m	R313637	PC
Accessories		R&Mindustry Patch Cord,m, Cat. 6A (ISO), Shielded, Green, PUR, TIA 568A, Plug RJ45 Type 06 Plast IP67, s, Plug RJ45 Type 06 Plast IP67, s, 5m	R313638	PC
Accessories		R&Mindustry Patch Cord,m, Cat. 6A (ISO), Shielded, Green, PUR, TIA 568A, Plug RJ45 Type 06 Plast IP67, s, Plug RJ45 Type 06 Plast IP67, s, 7.5m	R313639	PC
Accessories		R&Mindustry Patch Cord,m, Cat. 6A (ISO), Shielded, Green, PUR, TIA 568A, Plug RJ45 Type 06 Plast IP67, s, Plug RJ45 Type 06 Plast IP67, s, 10m	R313640	PC
Accessories		R&Mindustry Patch Cord,m, Cat. 6A (ISO), Shielded, Green, PUR, TIA 568A, Plug RJ45 Type 06 Plast IP67, s, Plug RJ45 Type 06 Plast IP67, s, 2.5m	R313641	PC
Accessories		R&Mindustry Patch Cord,m, Cat. 6A (ISO), Shielded, Green, PUR, TIA 568A, Plug RJ45 Type 06 Plast IP67, s, Plug RJ45 Type 06 Plast IP67, s, 5m	R313642	PC
Accessories		R&Mindustry Patch Cord,m, Cat. 6A (ISO), Shielded, Green, PUR, TIA 568A, Plug RJ45 Type 06 Plast IP67, s, Plug RJ45 Type 06 Plast IP67, s, 7.5m	R313643	PC
Accessories		Connection Module Cat. 6A, 1xRJ45/u, Special, 100x	R510087	PC
Accessories		Connection Module Cat. 6A, 1xRJ45/s, Special, 100x	R510088	PC
Accessories		Connection Module Cat. 6A, 1xRJ45/u, Special, 10x	R803926	PC
Accessories		Connection Module Cat. 6A, 1xRJ45/s, Special, 10x	R803927	PC
Accessories		Connection Module Cat. 6A EL, 1xRJ45/s, Special, 10x	R813508	PC
Accessories		Connection Module Cat. 6A EL, 1xRJ45/s, Special, 100x	R813509	PC
Accessories		Connection Module Cat. 6A EL, 1xRJ45/u, Special, 10x	R813510	PC
Accessories		Connection Module Cat. 6A EL, 1xRJ45/u, Special, 100x	R813511	PC

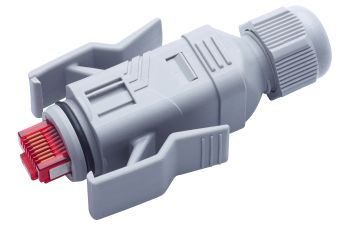

Accessories		Plug FM45 Cat.6A shielded or unshielded AWG22 to 26 IP67 Type06 housing	R814568	PC
