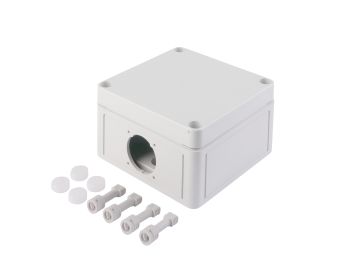

Wall mounting box-IP54-110x110x66-1x32mm

Article no.: R873772
EAN / GTIN: 7611821013648
Delivery Unit: 1
Unit of Measure: Piece

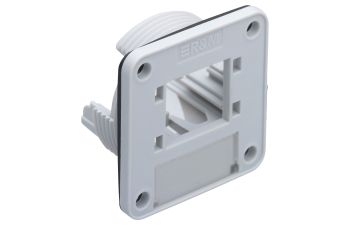

The housing has been prepared for mounting the mounting frame, which achievesprotection class IP54.

The cable entry is prepared to accept the M20 cable gland. (20.5mm)



The fiberglass-reinforced housing achieves protection class IP54 per attachments.

The housing is already prepared for installations with holes for cable entry & exit.

Technical Data
Protection class IP IP 54 (correlates to NEMA 3S)
IP 54 (correlates to NEMA 3S)
Outlet type surface-mounting (SM)&(FM)
Capacity (ports) 1
Mechanical Data
Dimensions 110.0 mm x 110.0 mm x 66.0 mm / 4.331 in x 4.331 in x 2.598 in (W x H x D)
Color 7035 Light gray
Material plastic: PA66, fiber-glass-reinforced
Environmental Characteristics
Operation temperature -35 °C to +60 °C / -31 °F to +140 °F
Electrical Data
Standard Impact strength: IK08 acc. to EN 50102
