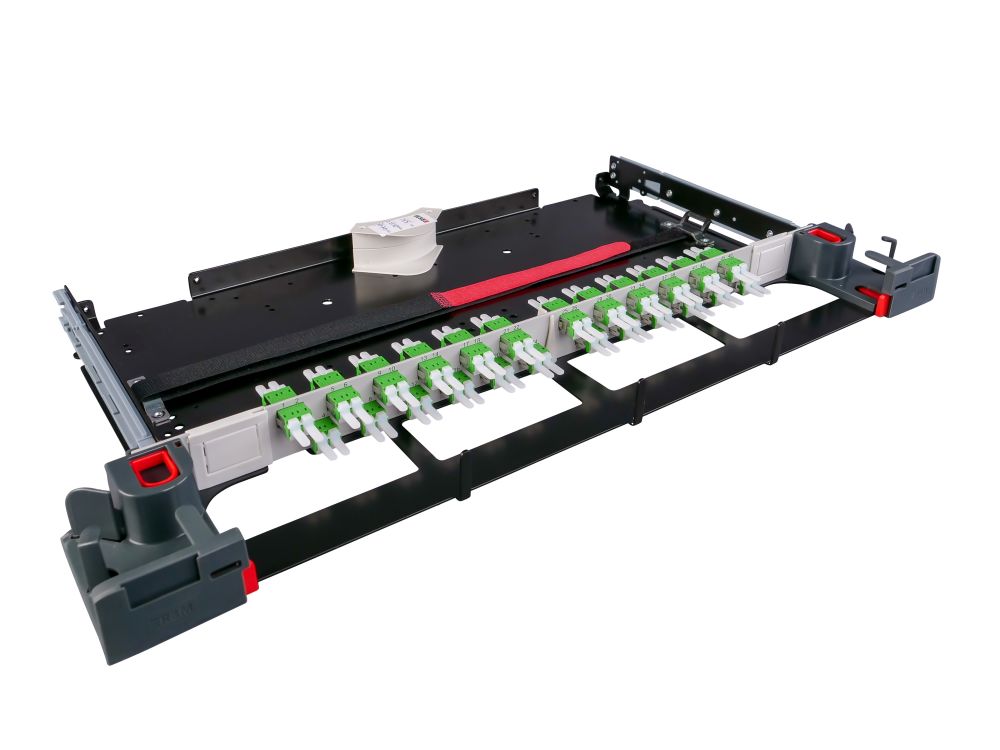

3/4U PRIME FBU is a breakout unit. Simple connection of pre-assembled cables. Feeding and connecting of the cables from the front and back side. Attaching the fan-out cable with safety strap. Suitable for PRIME-3U rack ETSI and 19 "rack mounting.
Scope of supply
3/4U FBU-Unit fully assembled1 pcs. Velcro tape1 pcs. Laser sign, small Installation manual
Technical Data
Fiber count |
24
|
Number of connectors (A) |
24
|
Connector type (A) |
LC-Duplex
|
Connector color (A) |
green
|
Polishing plug (A) |
APC
|
Protection class IP (A) |
IP 20
|
Attenuation grade IL (A) |
C
|
Rack mounting version |
PRIME-3U-Sub-rack, ETSI/19"
|
Assembly |
fully populated
|
Mounting frame type |
Slide-in unit
|
Sleeve material |
ceramic
|
Mechanical Data
Color |
metal sheet (Black-RAL 9005), front and fiber management (light gray-RAL 7035)
|
Material |
sheet metal and plastic
|
Weight |
2.2 kg
|
Environmental Characteristics
Operation temperature |
-25 °C to +70 °C / -13 °F to +158 °F
|
Storage / Transport temperature |
-40 °C to +85 °C / -40 °F to +185 °F
|
Halogen free, acid gases |
Pass
|
2015 / 863 / EU - RoHS 3 |
Pass
|
Electrical Data
Standard |
Adapter in acc. with IEC 61754-20
|
