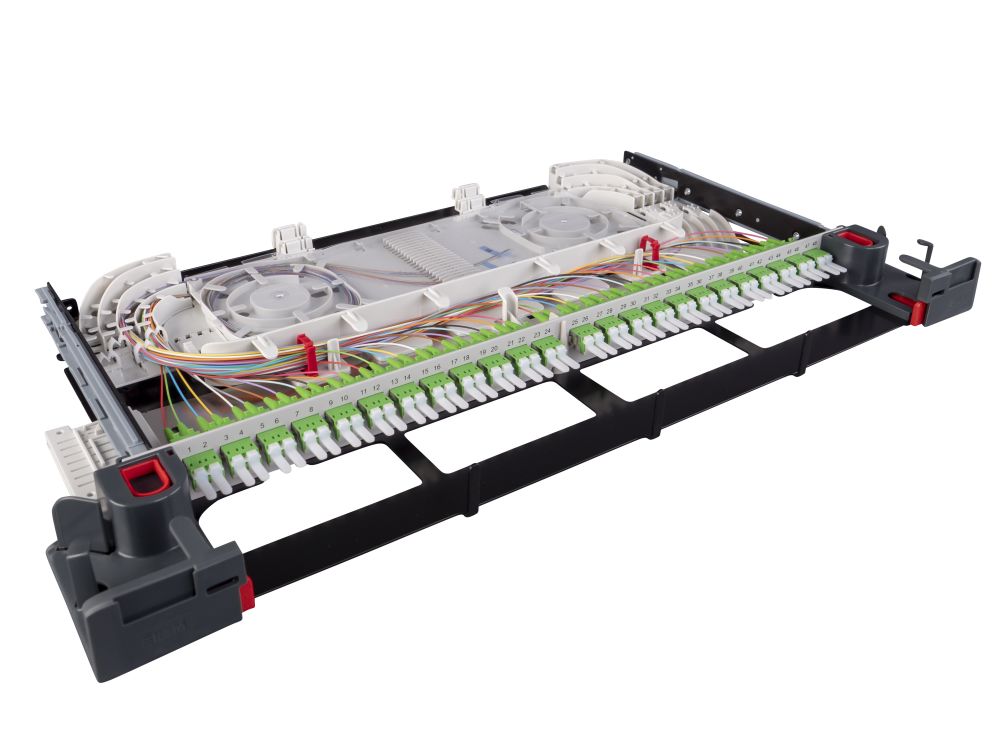

3 /4U PRIME FTU is the splice patch unit. The basic fiberinlay is suitable for 24/48 HS shrinkage contactors. Depending on the number of fibers, up to three additional MCM splice trays are equipped for 24/48 HS each.The fiber feed takes place via the left side. It can be connected up to 8x5mm transport tubes without tools. Suitable for PRIME-3U rack ETSI and 19 "Rack with back mounting.
Scope of supply
3/4U FTU-Unit fully assembled 4 pcs. Cable ties, small 4 pcs. Plastic clip, small 1 pcs. Laser sign, small Installation manual
Technical Data
| Fiber type |
Singlemode (SM)
|
| Fiber count |
48
|
| Fiber class |
G.657.A1 (covers G.652.D, OS1, OS2)
|
| Fiber diameter |
n.a.
|
| Number of connectors (A) |
24
|
| Connector type (A) |
LC-Duplex
|
| Connector color (A) |
green
|
| Polishing plug (A) |
APC 8°
|
| Protection class IP (A) |
IP 20
|
| Return loss grade RL (A) |
1
|
| Attenuation grade IL (A) |
C
|
| Rack mounting version |
PRIME-3U-Sub-rack, ETSI/19" BM
|
| Assembly |
fully populated
|
| Mounting frame type |
Slide-in unit
|
| Sleeve material |
ceramic
|
Mechanical Data
| Color |
metal sheet (Black-RAL 9005), front and fiber management (light gray-RAL 7035)
|
| Material |
sheet metal and plastic
|
| Weight |
2.4 kg
|
Environmental Characteristics
| Operation temperature |
-25 °C to +70 °C / -13 °F to +158 °F
|
| Storage / Transport temperature |
-40 °C to +85 °C / -40 °F to +185 °F
|
| Halogen free, acid gases |
Pass
|
| 2015 / 863 / EU - RoHS 3 |
Pass
|
Electrical Data
| Standard |
Adapter and connector in acc. with IEC 61754-20LC, LC-Duplex
Pigtails in acc. with color code DIN VDE 0888
|
