PRIME-Fiber Overlenght Unit (FOU), Back, 0,

Article no.: R850807
EAN / GTIN: 7611821027331
Delivery Unit: 1
Unit of Measure: Piece

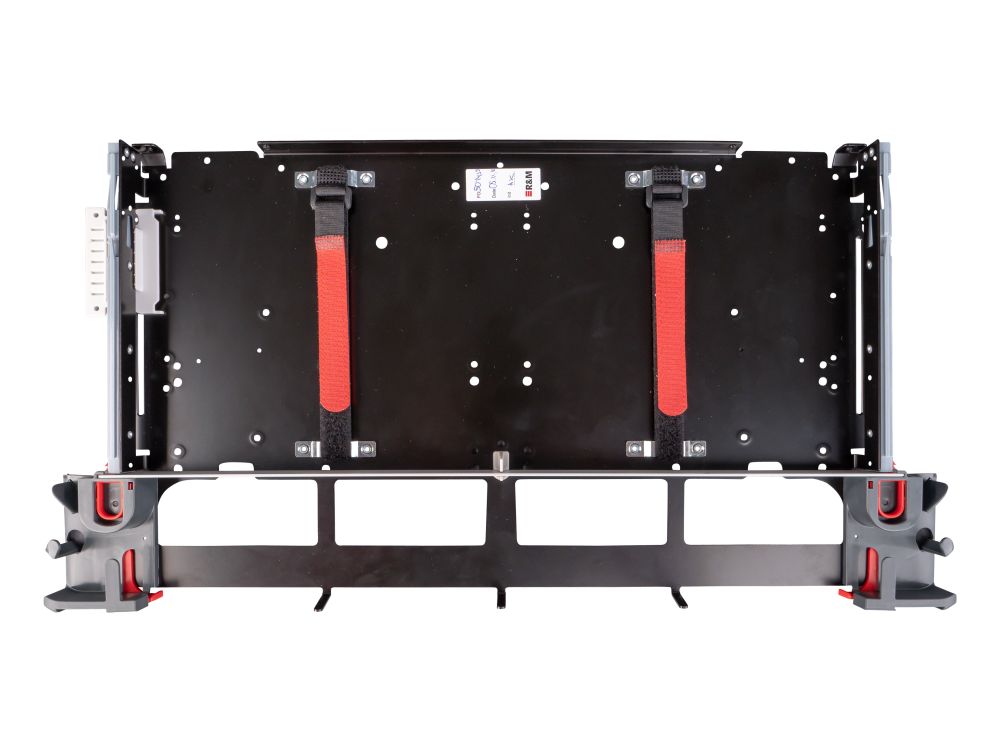

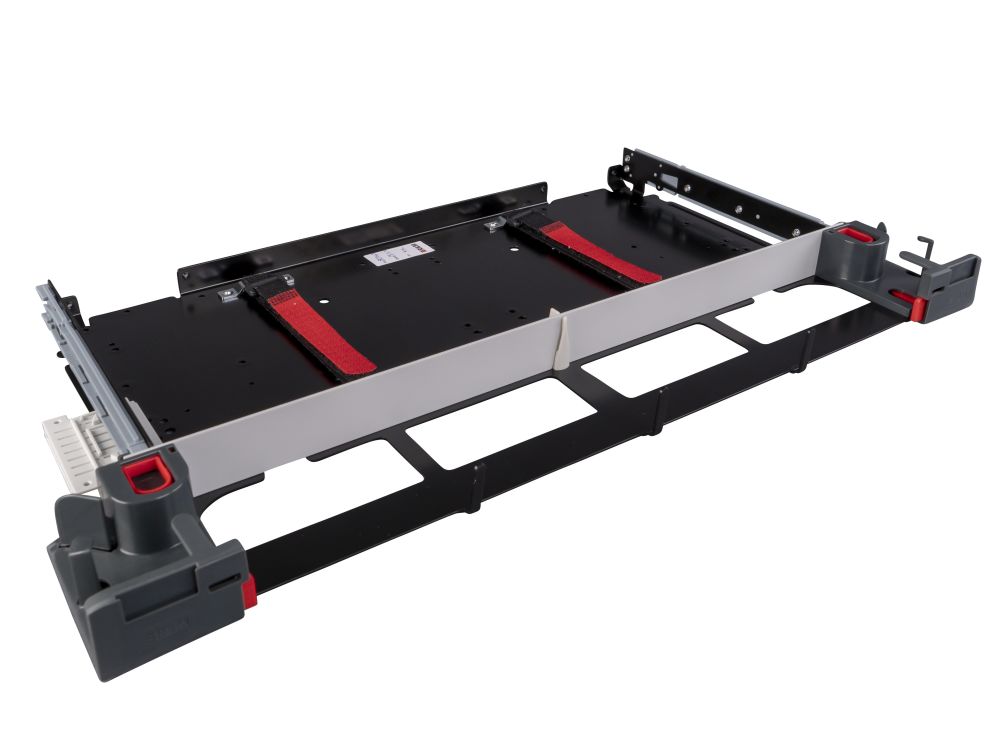

3/4U PRIME FOU (Fiber Overlength Unit) back empty



3/4U PRIME FOU is a fiber overlenght unit. Inside the unit can store up to 32mFiber overlenght of loose tube or patch cord fibers. With the two Velco tape the cable can be fixed in a safe way. The fiber feed is from the back side. Suitable for PRIME-3U sub-rack for 19 "rack with front mounting.

Scope of supply

3/4U FOU-Unit

2 pcs. Velcro-tape

1 pcs. Cable mounting bracket

2 pcs. Screws and Washer M3

1 pcs. Laser sign, small

Installation manual

Technical Data
Rack mounting version PRIME-3U-Sub-rack, ETSI/19" Front Mounting
Assembly fully populated
Mounting frame type Slide-in unit
Mechanical Data
Color metal sheet (Black-RAL 9005), front and fiber management (light gray-RAL 7035)
Material sheet metal and plastic
Weight 2.15 kg
Environmental Characteristics
Operation temperature -25 °C to +70 °C / -13 °F to +158 °F
Storage / Transport temperature -40 °C to +85 °C / -40 °F to +185 °F
Halogen free, acid gases Pass
2015 / 863 / EU - RoHS 3 Pass
