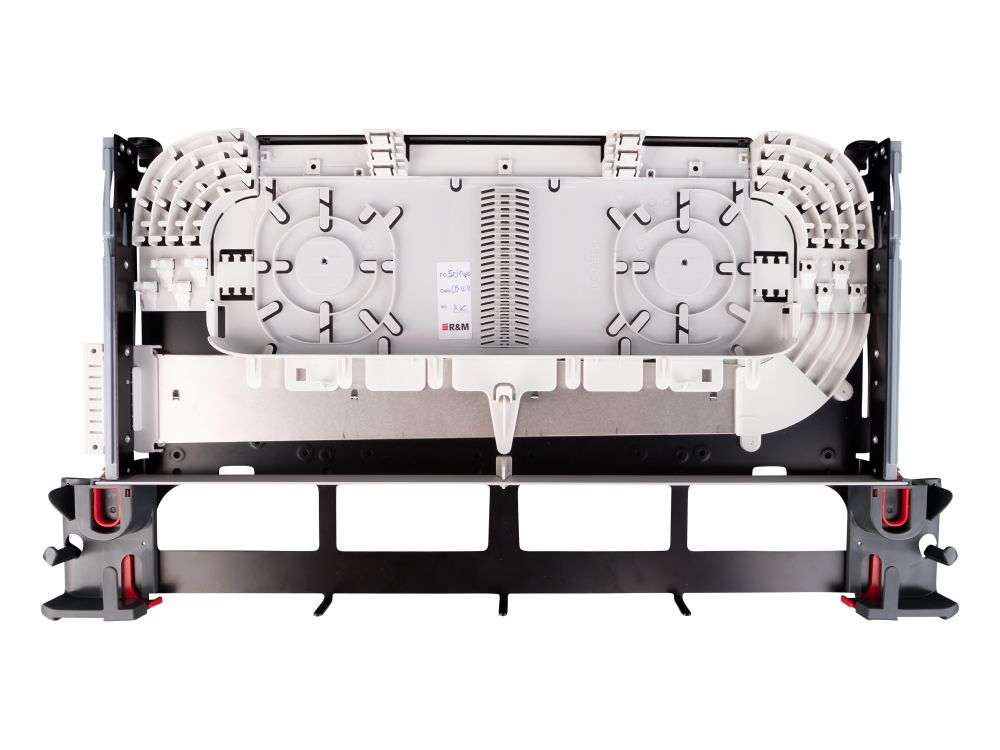

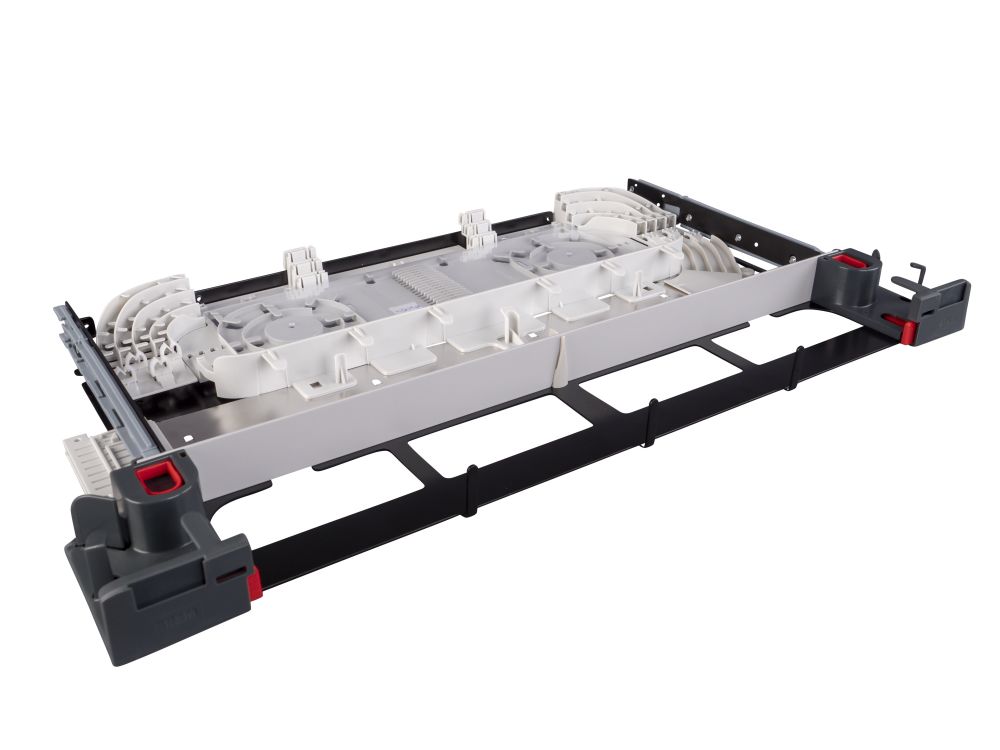

3/4U PRIME FSU is a pure splice unit. The basic fiber inlay is suitable for 24 crimp splice protectors. Up to three additional MCM splice cassettes with 24 crimp splice protectors each can be retrofitted. The fiber feed is from the right side and up to 8x5mm transport tubes with a tool-less connection. Suitable for PRIME-3U rack ETSI and 19 "rack with rear mounting Max capacity: 96 fiber optic terminations
Scope of supply
3/4U FSU-Unit with Fiber inlay 4 pcs. Cable ties, small 1 pcs. Laser sign, small Installation manual
Technical Data
| Rack mounting version |
PRIME-3U-Sub-rack, ETSI/19"BM
|
| Assembly |
fully populated
|
| Mounting frame type |
Slide-in unit
|
Mechanical Data
| Color |
metal sheet (Black-RAL 9005), front and fiber management (light gray-RAL 7035)
|
| Material |
sheet metal and plastic
|
| Weight |
2.36 kg
|
Environmental Characteristics
| Operation temperature |
-25 °C to +70 °C / -13 °F to +158 °F
|
| Storage / Transport temperature |
-40 °C to +85 °C / -40 °F to +185 °F
|
| Halogen free, acid gases |
Pass
|
| 2015 / 863 / EU - RoHS 3 |
Pass
|
